• Wheels, 4-16" x 6" (40.6 cm x 15.2 cm) steel (2WD models only)
• Tires, P215/70R16 all-season, blackwall (2WD models only.)
• Tire, compact spare
• Bumpers front body-color upper with Dark Gray lower, rear step-style body-color with a Dark Smoke Gray pad
• Air dam, Ebony
• Grille, color-keyed bar and grille surround
• Fog lamps, front, halogen
• Mirrors, outside manual, manual-folding
• Wipers, front intermittent with washers
• Bedliner
• Tailgate, 2-position

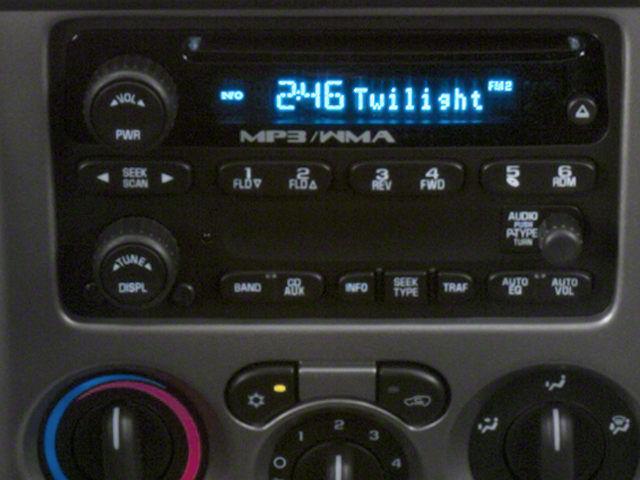

• Audio system, AM/FM stereo with seek-and-scan and digital clock (Included and only available with (Y5D) Crew Cab Value Option Package)
• Bluetooth® for Phone, personal cell phone connectivity to vehicle audio system (Deleted when (UE0) OnStar delete is ordered.)
• Audio system feature, uplevel speaker system

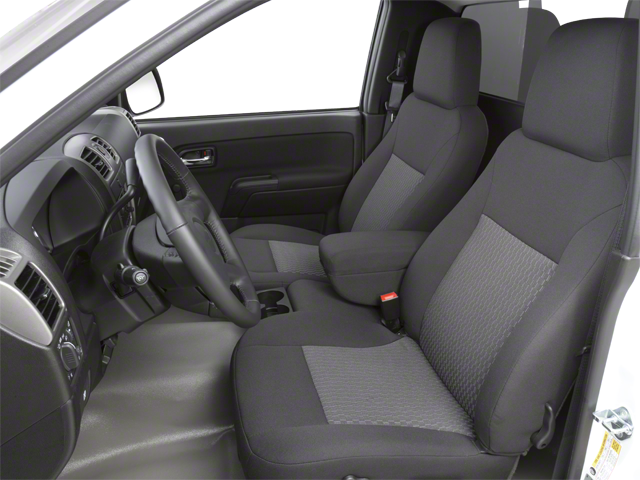

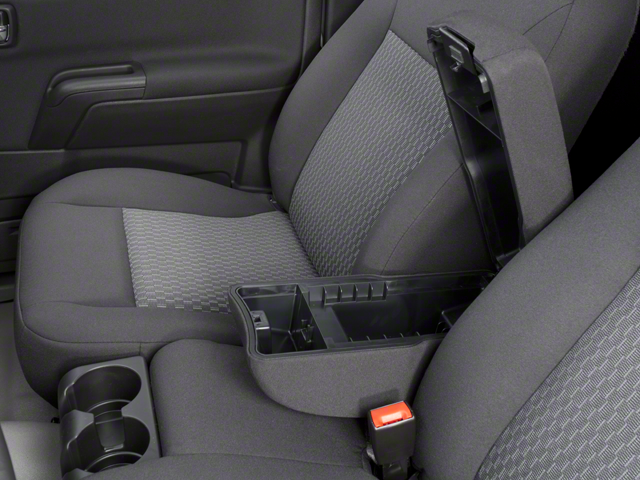

• Seats, front 60/40 split-bench
• Floor covering, Ebony carpeting
• Floor mats, rubberized-vinyl front (Requires (B30) Ebony carpeted floor covering)

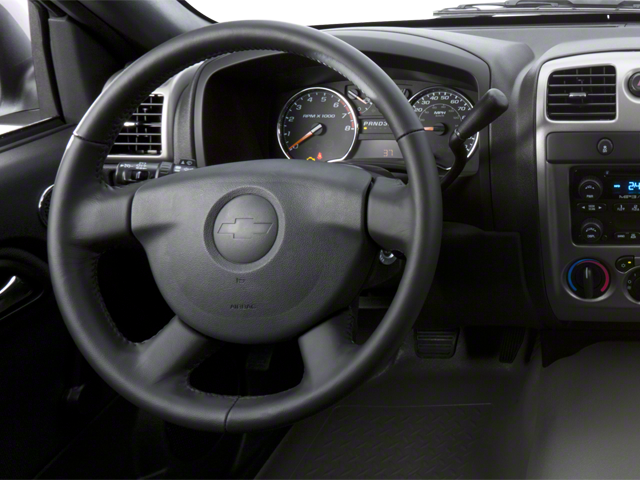

• Steering wheel, leather-wrapped
• Steering column, Tilt-Wheel
• Theft-deterrent system, vehicle, PASSlock
• Stolen Vehicle Assistance (Deleted when (UE0) OnStar delete is ordered.)
• Warning tones headlamp on, key-in-ignition, driver safety belt unfasten and turn signal on
• Door locks, manual

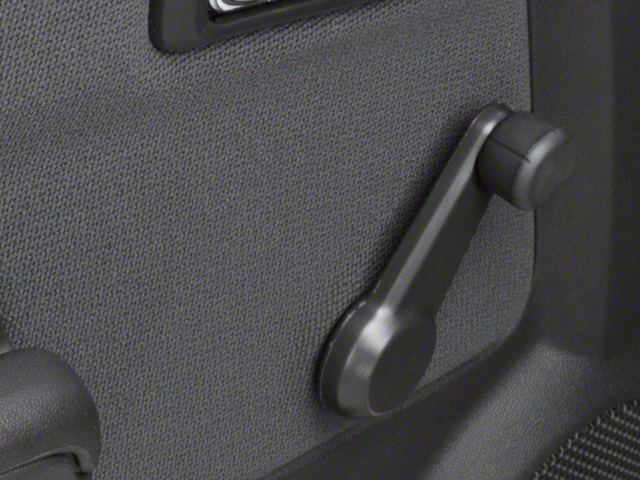

• Windows, manual driver and front passenger
• Cruise control
• OnStar Turn-by-Turn Navigation (Deleted when (UE0) OnStar delete is ordered.)
• Air conditioning, single-zone manual
• Power outlets, 2 auxiliary with covers, 12-volt
• Accents, interior Titanium Nova Silver-colored air outlets and center control stack with chrome door handle bezels, uplevel instrument cluster bezel, front upper door speaker bezel and air vent sliders
• Door trim integral armrests and driver- and front passenger-side map pockets with cloth inserts
• Mirror, inside rearview manual day/night
• Visors, driver and front passenger, padded with cloth includes front passenger vanity mirror
• Assist handle, front passenger
• Coat hook, passenger-side rear

• StabiliTrak, stability control system with Traction Control
• Daytime Running Lamps with automatic exterior lamp control

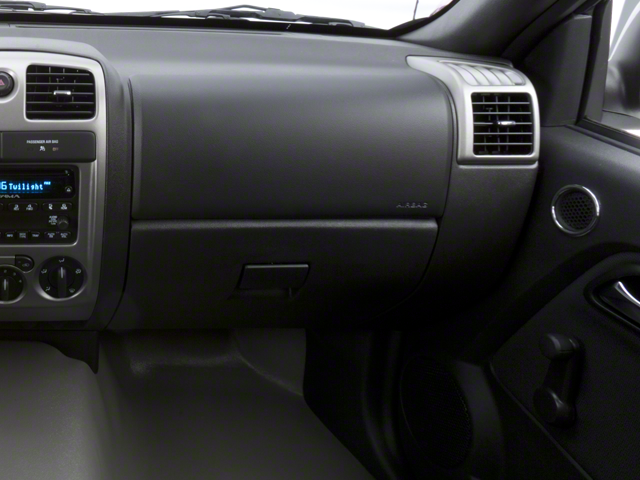

• Air bags, frontal, driver and right-front passenger with Passenger Sensing System (A note about child safety: Always use safety belts and the correct child restraint for your child's age and size. Even with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See your vehicle Owner's Handbook for more information.)
• Air bags, head curtain side-impact, driver and right-front passenger, first and second row outboard passengers (Head Curtain Side Air Bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraint for your child's age and size, even with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual for more safety information.)
• Automatic Crash Response (Deleted when (UE0) OnStar delete is ordered.)
• OnStar, 6 months of Directions and Connections plan includes Automatic Crash Response, Emergency Services, Crisis Assist, Stolen Vehicle Assistance, Remote Door Unlock, Turn-by-Turn Navigation with OnStar eNav (where available), OnStar Vehicle Diagnostics, Roadside Assistance, Remote Horn and Lights, and Hands Free Calling (Visit onstar.com for details and system limitations.)
• Safety belts, 3-point, driver and right-front passenger, adjustable (center front position lap belt with bench seat only)
• Tire Pressure Monitor

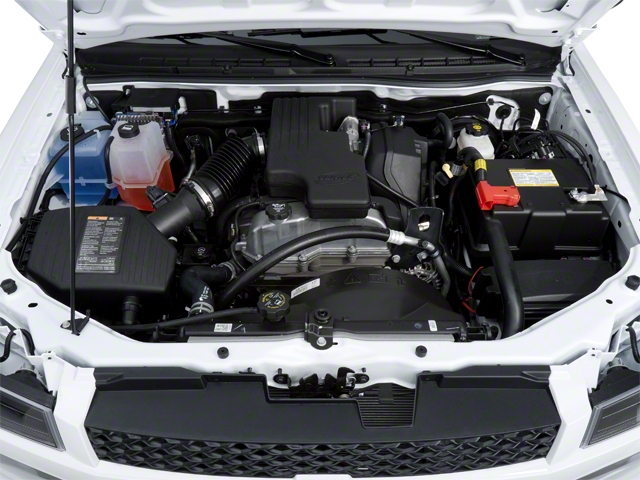

ENGINE, 2.9L DOHC 4-CYLINDER SFI

• (185 hp [137.9 kW] @ 5600 rpm)
• 190 lb-ft [263.2 Nm] @ 2800 rpm) (STD)

• Mileage
• Fuel Economy Est-Combined (MPG): 21
• EPA Fuel Economy Est - City (MPG): 18
• EPA Fuel Economy Est - Hwy (MPG): 25
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 590
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2633
• Gross Axle Wt Rating - Rear (lbs): 2896
• Curb Weight - Front (lbs): 1888
• Curb Weight - Rear (lbs): 1478
• Gross Vehicle Weight Rating Cap (lbs): 4850
• Gross Combined Wt Rating (lbs): 6000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2400
• Dead Weight Hitch - Max Tongue Wt. (lbs): 240
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 2400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 360
• Suspension
• Suspension Type - Front: Coil Springs
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 2633
• Spring Capacity - Rear (lbs): 2900
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 2633
• Axle Capacity - Rear (lbs): 2900
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 30
• Shock Absorber Diameter - Rear (mm): 30
• Stabilizer Bar Diameter - Front (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.2 x 1.6
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 11.6 x 2.5
• Tires
• Front Tire Order Code: QRD
• Rear Tire Order Code: QRD
• Spare Tire Order Code: ZCY
• Front Tire Size: P215/70R16
• Rear Tire Size: P215/70R16
• Spare Tire Size: Compact
• Front Tire Capacity (lbs): 1452
• Rear Tire Capacity (lbs): 1452
• Spare Tire Capacity (lbs): 1452
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6
• Rear Wheel Size (in): 16 x 6
• Spare Wheel Size (in): Compact
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.4
• Steering Ratio (:1), At Lock: 3.31
• Turning Diameter - Curb to Curb (ft): 39.4
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 19
• Fuel Tank Location: Inboard LH Frame Rail
• Exterior Dimensions
• Wheelbase (in): 111.3
• Length, Overall w/o rear bumper (in): 192.4
• Width, Max w/o mirrors (in): 67.6
• Height, Overall (in): 64.9
• Overhang, Front (in): 33.9
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 110.9
• Cab to Axle (in): 34.2
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 33.0
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 7.7
• Ground Clearance, Rear (in): 7.7
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 72.8
• Cargo Box Width @ Floor (in): 57.2
• Cargo Box Width @ Wheelhousings (in): 42.6
• Cargo Box (Area) Height (in): 18.6
• Tailgate Width (in): 52.4
• Cargo Volume (ft³): 44.0
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 39.3
• Front Leg Room (in): 44.0
• Front Shoulder Room (in): 57.1
• Front Hip Room (in): 53.3
• Summary

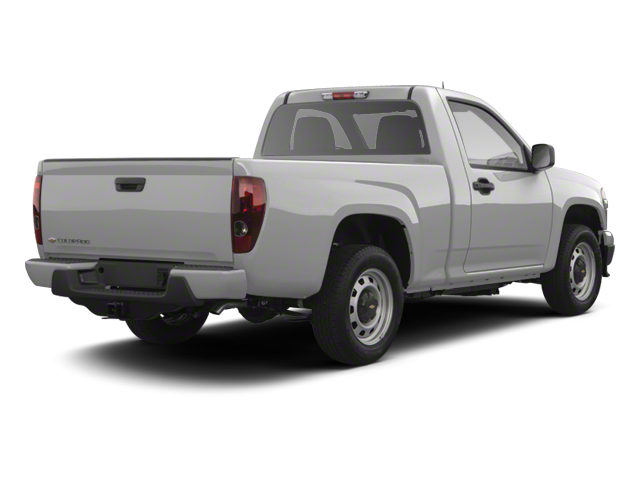

• Vehicle Name: Chevrolet Colorado
• Body Style: Regular Cab
• Body Code: E63
• Emissions
• EPA Greenhouse Gas Score: 4
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.9
